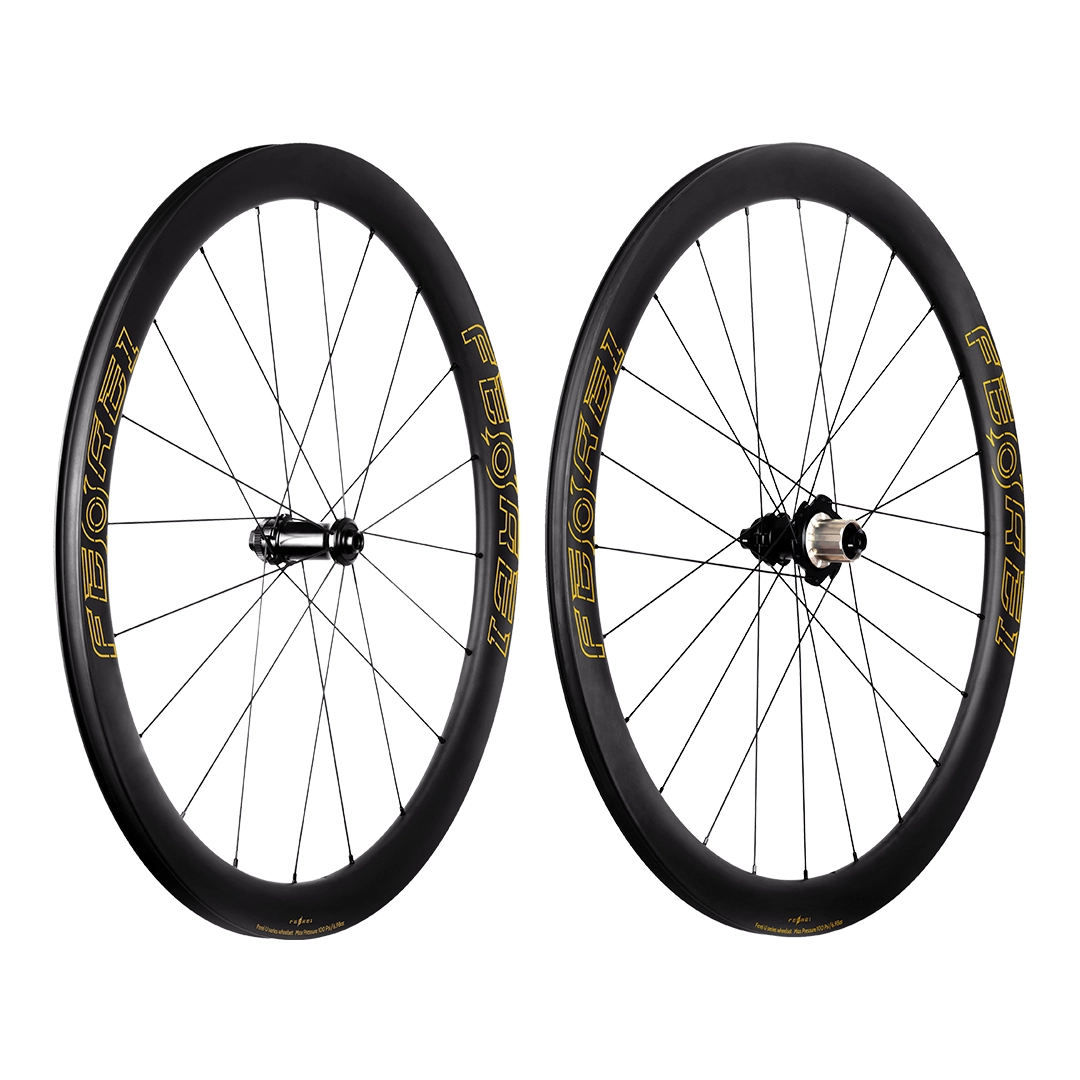

Ferei U Series Road Disc Brake Wheelset

The FEREI U series of classic road wheelset,offer cyclists reliable experence in cycling.The classic series load on hub designed by pro flange, and drive on other side flange size widely to promote that side rigidity.There are two sizes of 46mm and 60mm frame height selected, and let cyclists can feel comfort on cyclisting experence in different road.

Inquiry

Write a Review

A Series Road Disc Brake Wheelset

Rim Height 46mm-Gold Paint

Rim Height 46mm-White Paint

Rim Height 60mm-Gold Paint

Rim Height 60mm-White Paint

1 (23)

2 (24)

4 (17)

1 (24)

2 (25)

3 (23)

1 (25)

5 (15)

3 (24)

1 (26)

2 (26)

3 (25)

Specification

Rim Dept	Front46mm Rear46mm
Rim Dept	Front60mm Rear60mm
Rim External Width	28mm，Rim internal Width：21mm
Tire types	Tubeless
Rim Material	T700 Carbon Fiber
Rim Diameter	700C
Hub body	Aluminum Alloy （CNC Precision Machining）
Bearings	Steel bearings
Holes	front-20 holes、rear-24 holes
Spoke Pattern	1：1
Brake compatibility	Disc (Center Lock)
Axle	Front: Thru-Axle12X100 / QR9X100
Axle	Rear: Thru-Axle12X142 /QR10X135
Free hub	HG/XDR/CP
Spoke	Pillar Wing20；
Weight	front 46mm（616g±15g）rear 46mm（774g±15g）
Weight	front 60mm（695g±15g）rear 60mm（842g±15g）

FEREI's patented hub

FEREI's patented hub, featuring a unique design and precision manufacturing process, delivers an ultimate riding experience.

Utilizing Ferei's FCT patented technology

Utilizing Ferei's FCT patented technology (magnetic coupling system), it offers convenience in maintenance and versatile options for customization (allowing the replacement of couplers with different gear ratios). The FCT technology preserves the advantages of the first-generation toothed engagement mechanism while introducing a completely new design that significantly improves the performance metrics we care about in hub systems. The new-generation hub structure is simpler and lighter, maintaining excellent durability and rigidity. Additionally, disassembly and maintenance are made simpler.

Product Details

The FEREI U series classic wheelset has been in service with the FEREI Intercontinental Team since 2019, and has been used "Silk Road", "Tour of Lugu Lake", "Tour of Fanjing Mountain" "Xinli Cup" Tour of Poyang Lake in 2019. U series have helped drivers and teams continue to achieve good results such as King of the Mountains, first place in Greater China, and team championship and so on.

Featuring a 46mm frame height design, this product excels on both flat roads and uphill climbs, showcasing its characteristics of agility, rapid acceleration, and a lightweight feel to the fullest extent.

Original vacuum carbon fiber wheel rims, no need for tape during installation, eliminating concerns about inner tube damage due to tape aging.

Equipped with the Pillar 1420 flat spokes, optimized for aerodynamics, ensuring stability even in the face of crosswinds.

The completely customized hub and wheel rim spoke hole angles are designed to ensure that

Large flange design, with an increased width on the drive side flange, enhances lateral rigidity. each spoke seamlessly integrates with the wheel rim for optimal comfort

Crafted with high-pressure manual weaving, the intricate handcrafted pattern results in lower aerodynamic resistance and higher strength.
Paired with the precision CNC hub independently developed and manufactured by FEREI, featuring a dust-free design. Through high-precision assembly of each component, achieving physical dust prevention to minimize damping.

The axle core and side cover feature a threaded joint design, which rigorously tests the precision processing requirements. This not only provides convenience during the disassembly and reassembly of the wheelset, eliminating the need for readjusting disc brakes, but also addresses the drawbacks of traditional press-fit side covers. The wear of anti-loosening rubber rings in these covers can lead to hub misalignment and cover loss.

Six 6902 Enduro steel cartridge bearings, durable and easy to maintain.
